Application

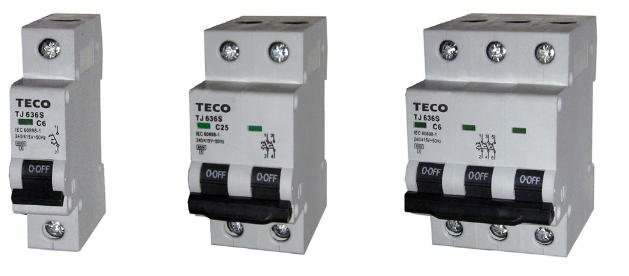

Miniature circuit breaker is used in lighting distribution system or motor circuit for protecting overload and short-circuit. The product is novel in structure, light in weight, reliable and excellent in performance.

It has high breaking capacity, can trip accurately, mounted with Din rail, it's case and body are adopted with high fire-resistant and shock proof plastics. The product with long life, is mainly used in AC 50HZ/60HZ single-pole 230/240V or two, three, four-pole 400/415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching.

Specification

- IEC 60898-1 : Type "C" : mainly used for protecting illumination

                       Type "D" : mainly used for protecting motor

- Short circuit test : 4.5kA, 6kA, 10kA

- Rated voltage : 230/400V, 240/415V AC ; 50Hz/60Hz

- Rated current : Type "C" : 6,10,16,20,25,32,40,50,63A

                         Type "D" : 6,10,16,20,25,32,40A

- Housing : Fire retardant material

- Rated temperature : 40°c

- Number of pole(s) : 1P, 2P, 3P
